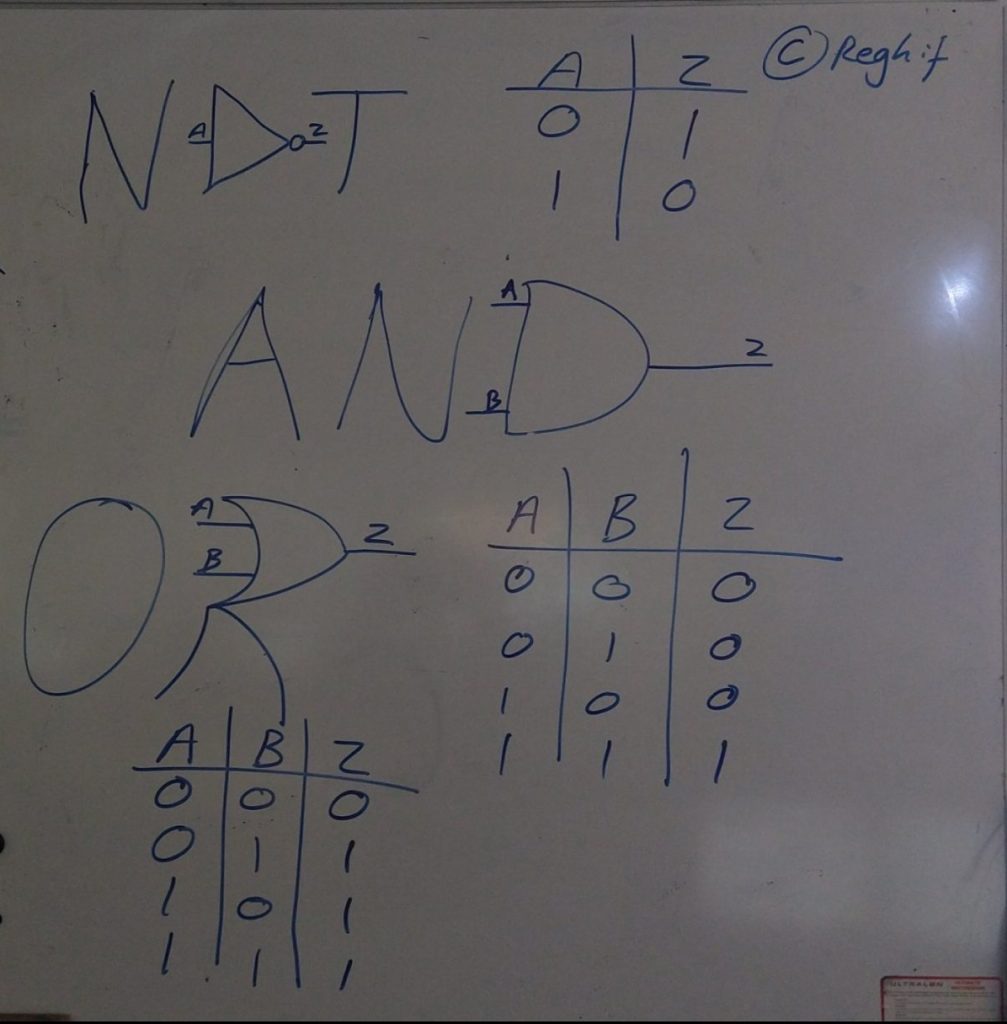

These are the logic gates that we need for AQA GCSE 2019-2021. Next year will add XOR, but for now, these are all.
My magnificent year 10 class take the credit for the graphic idea for the NOT gate, I take the credit for the others myself. Hopefully they’ll help you remember which one is which in the exam!!!
